Laser Cleaning: The Hidden Costs and Limitations You Need to Know

Key Takeaways: Laser cleaning’s primary disadvantages are high upfront costs, slow cleaning speeds on large surfaces, and significant safety risks requiring a designated Laser Safety Officer.

While laser cleaning is promoted as a revolutionary advancement in surface treatment technology, it includes several significant drawbacks that can make it a poor fit for many applications. Laser cleaning comes with substantial upfront investments, ongoing maintenance requirements, and operational limitations that aren't always evident in initial demonstrations.

Before committing to this technology, it's important to understand these practical disadvantages and whether they align with your specific cleaning requirements and operational capabilities.

Limitations of Laser Cleaning

Despite being marketed as an environmentally friendly and precise method, laser cleaning presents several drawbacks:

• High initial investment

• Surface and material limitations

• Environmental and work area limitations

• Increased operational complexity

• High energy demands

• Slow cleaning speed

• Safety risks due to fume exposure

For many industrial cleaning needs, especially those involving large areas or heavy-duty buildup, methods like dry ice blasting remain faster, more cost-effective, less operationally complex, and more versatile.

What is Laser Cleaning?

Laser cleaning is a surface preparation and cleaning method that uses focused laser beams to remove paint, oxide, rust, or residues from a material’s surface. It works by rapidly heating and vaporizing contaminants without relying on chemicals or abrasives. This non-contact process is highly controlled and is often used on certain metals and delicate substrates where precision is critical.

Typical Industrial Applications

In industrial settings, laser cleaning machines are used in specialized applications such as:

• Preparing metal surfaces for welding

• Precision cleaning in small areas

• Removing paint or oxidation from components

However, the broader practicality of laser cleaning is limited since the machines are expensive to purchase and maintain. Additionally, they generally operate slower than other cleaning methods, making them less suitable for large-scale or high-throughput environments.

How Laser Cleaning Works

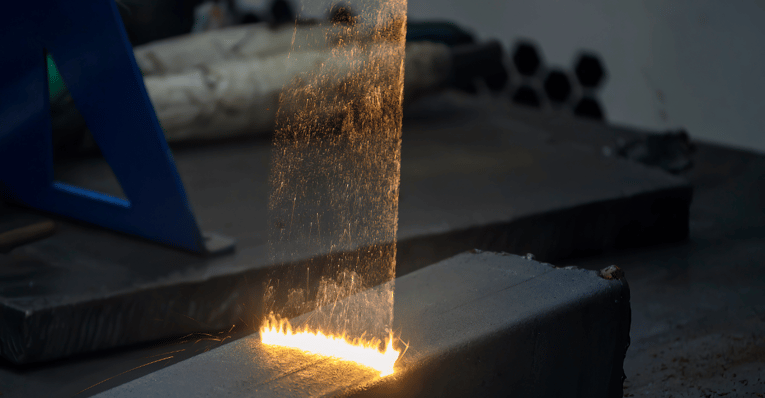

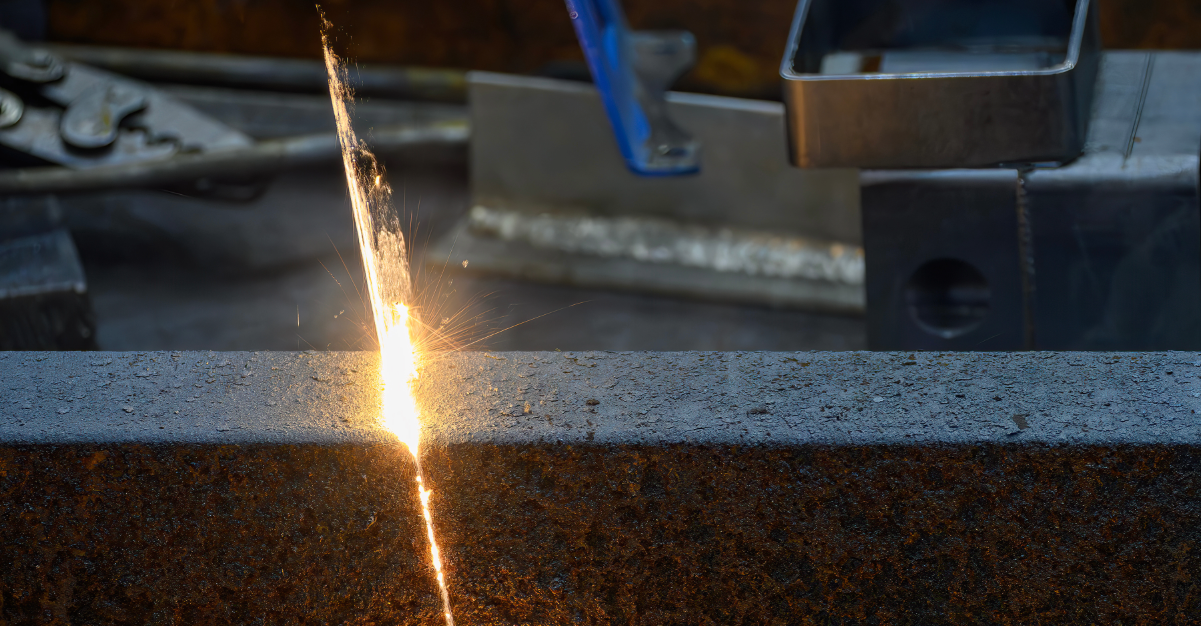

Laser cleaning works by directing a high-intensity laser beam onto a material’s surface to remove unwanted contaminants such as rust, paint, oil, or oxide layers. The laser rapidly heats the surface layer, causing the contaminants to either vaporize or be ejected into microscopic particles through a process called ablation.

This process is highly localized, meaning it targets only the contaminant layer without significantly affecting the underlying material. This effect makes laser cleaning suitable for delicate cleaning tasks when used correctly.

There are two main types of laser cleaning: pulsed and continuous wave:

Pulsed Lasers

Pulsed lasers deliver short, high-powered bursts that are ideal for precise and controlled cleaning, especially in sensitive applications like historical artifact restoration.

Continuous Wave Lasers

Continuous wave lasers emit a constant beam and are typically used for heavy-duty tasks. The effectiveness of the process depends on factors such as laser power, pulse duration, and the properties of the material being cleaned.

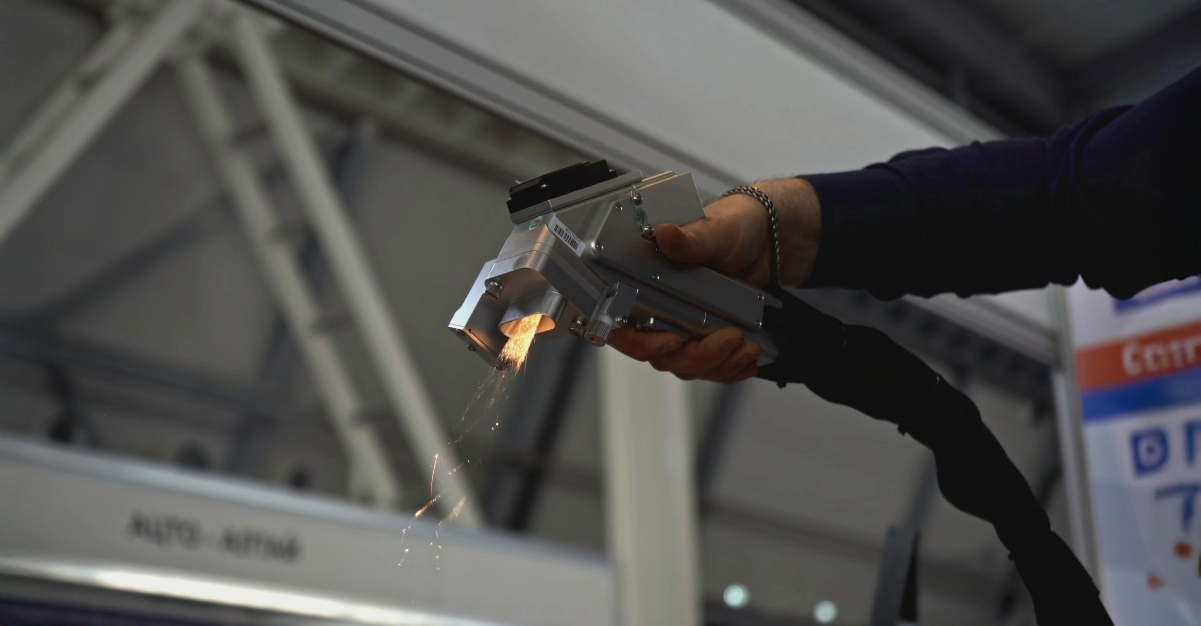

What is Needed to Run a Laser Cleaning Machine?

Running a laser cleaning machine requires proper infrastructure, trained personnel, and strict environmental controls. Below are the key components and considerations necessary for safe and effective operation:

Equipment and Power Requirements

Laser cleaning machines rely on high-power laser sources, which must be adequately cooled and powered. Industrial-strength cleaning lasers typically begin at 100 watts and can reach up to 3,000+ watts of power to vaporize contaminates. These systems require access to industrial-grade electricity (220V or 400V three-phase power).

Additional components include:

• Scanning optics

• Cooling systems

• Control unit

• Computer interface to fine-tune parameters such as laser frequency, pulse duration, and beam focus

Trained Operators and Safety Protocols

Operating a laser cleaning system safely requires trained personnel familiar with laser safety standards set by authorities like OSHA. Operators must understand the following safety standards set by the American National Standard Institute (ANSI):

• ANSI Z136.1: Safe Use of Lasers

• ANSI Z136.6: Safe Use of Lasers Outdoors

• ANSI Z136.7: Testing and Labeling of Laser Protective Equipment

• ANSI Z136.9 (Historical): Safe Use of Lasers in Manufacturing Environments

Laser Safety Operators (LSOs) are mandated for Class 3B and Class 4 laser systems, as per the standards in ANSI Z136. Qualified individuals are typically an engineer or an environmental health physicist with experience in the field of laser measurement and applications. Designated safety personnel must undergo comprehensive training in laser safety protocols, including emergency procedures, PPE usage, and regulatory compliance.

Trained individuals must understand the following:

• How to configure and monitor the laser cleaning system properly

• How to properly use personal protective equipment (PPE), including laser safety goggles

• How to carefully manage the workspace to avoid accidental exposure to the laser beam, which can pose serious risks to skin and eyes

Environmental Controls and Fume Management

Laser cleaning can release hazardous particulates or fumes during the ablation process, depending on the type of contaminants or coatings being removed.

Proper ventilation or fume extraction systems are essential. These environmental controls add to the complexity and cost of running a laser cleaning setup, making it less practical than more straightforward industrial cleaning methods in some settings. The average cost of a portable fume extraction system can range from $500 to $5000+, depending on brand and application. Industrial-tiered systems can exceed $20,000+.

What Are the Disadvantages of Laser Cleaning?

Laser cleaning has drawbacks that limit its widespread adoption. It demands substantial capital investment, is limited on which surfaces it can clean, requires extensive training, and it consumes a considerable amount of energy. Here is a comprehensive list of the top disadvantages of laser cleaning:

1. High Cost of Equipment and Operation

Laser cleaning requires significant capital investment, with high upfront costs for the laser system itself and any necessary accessories such as cooling units and fume extractors.

a. High Upfront Costs

Industrial grade laser cleaning systems typically cost anywhere from $20,000 for standard industrial lasers up to over $200,000 for automated robotic laser cleaners, depending on their power, features, and automation capabilities. High-end industrial models with advanced control systems and robotics can push costs even higher, making them a significant investment for most businesses.

Additionally, laser cleaning operations require a fume extractor to remove any toxic gases from the work area caused by the vaporization of contaminants. The average cost of a fume extractor system can range between $1,000 to $2,000. Industrial-strength chillers are also necessary to reduce the significant heat generated by lasers, which can range from $500 to $800 for an effective machine.

b. Ongoing Operational Expenses

Laser cleaning machines not only require significant upfront investment, but also come with high ongoing operational costs. They draw roughly 10 to 15 kilowatts of power during operation. At U.S. average commercial electricity rates (~$0.13/kWh), that translates to about $1.30 to $2.00 per hour, driving up utility expenses over time.

Additionally, these systems rely on delicate optical components, such as specialized lenses and mirrors, that are both fragile and costly to replace if they become damaged or contaminated, further adding to the total cost of ownership. The average cost for annual replacement parts include the following ranges:

•    Protective lens (Windows): $500 to $3,600 annually, depending on usage
•    Laser nozzles: $915 to $1,830 annually
•    HEPA filters for fume extractor: $300 to $600 annually


2. Surface and Material Limitations

Laser cleaning is not universally effective across all materials or contaminants. It performs poorly on soft, fragile, or highly reflective surfaces, which cannot absorb or interact properly with laser energy. Surface characteristics including color, gloss level, and texture can influence how laser light is absorbed and transmitted, resulting in inconsistent cleaning performance.

Laser cleaning struggles with the following types of surfaces:

a. Soft or Fragile Surfaces

The high-energy beam can easily lead to thermal damage, discoloration, or microstructural changes on the substrate, which lacks the durability to withstand the intense localized heat and energy required for effective cleaning. Continuous laser beams deliver constant high energy, which can overheat the surface and cause micro-scratches, thermal stress, or abrasions.

Heat-sensitive materials such as plastic and rubber can be damaged or warped from laser cleaning due to excessive heat and energy absorption.

b. Highly Reflective Surfaces

Laser cleaning struggles with highly reflective surfaces because the laser beam is often reflected rather than absorbed, reducing its effectiveness.

c. Complex Surfaces

Laser cleaning is also ineffective on complex surfaces, such as molds with grooves, curved edges, or three-dimensional contours. Since laser cleaning relies on line-of-sight cleaning, laser beams struggle to provide uniform laser coverage, which limits their cleaning power.

d. Large Surface Areas

The process is relatively slow, making it inefficient and impractical for large-scale surface cleaning or intense cleaning. For example, laser cleaning is impractical for production lines or other high-throughput operations.

e. Textured and Porous Surfaces

Laser cleaning has difficulty penetrating deep pores or crevices in highly textured or porous surfaces, resulting in residual contamination or uneven cleaning patterns.

f. Contaminant Limitations

Laser cleaning struggles with certain types of contaminants, such as thick or sticky substances like heavy oil, grease, and tar. It is also less effective on thick paint layers or polymer coatings that are flexible and elastic, as these materials tend to absorb and dissipate the laser energy unevenly.

Laser cleaning performs best on thin, brittle, and loosely adhered contaminants that are under 0.5 mm in thickness; thicker, more resilient layers often limit its effectiveness.

3. Not Suitable for All Environments

Laser cleaning machines are not suitable in all workplace conditions. Their performance and safety can be significantly affected by the surrounding environment.

a. Sensitivity to Working Environment

While laser cleaning systems can function in many industrial settings, environments such as hot plant floors, highly dusty areas, or humid spaces, can compromise both their reliability and performance.

Multiple factors determine the optimal operating environment for laser cleaning machines, including temperature and humidity regulation, air quality control, and electrical power stability.

Proper management of these environmental conditions is essential for maximizing laser cleaning effectiveness. Inadequate environmental control can result in inferior cleaning performance, energy inefficiency, and safety hazards for operators and surrounding equipment.

These systems often require controlled environments with stable temperatures and clean air to operate safely and effectively.

b. Not Safe in Flammable or Explosive Environments

More importantly, laser cleaning machines are not recommended in environments containing flammable or explosive gases and liquids due to the risk of fire or explosion.

During operation, laser cleaning equipment can generate sparks, which may act as ignition sources in these risky atmospheres. Due to these safety hazards, laser cleaning machines must be avoided in flammable or explosive environments or used only with stringent precautions.

4. Increased Operational Complexity

Operating a laser cleaning system is not a plug-and-play task; it requires extensive training and expertise. Operators must understand how to manage complex parameters such as wavelength, pulse duration, and energy density to ensure effective cleaning without damaging the underlying material.

a. Energy Density Directly Affects Results

The success of laser cleaning is highly dependent on the laser beam’s energy density. If the energy is too low, it won’t generate enough thermal effect to remove contaminants, leading to inadequate or inconsistent results. On the other hand, if the energy density is too high, it can melt or damage the substrate, especially on sensitive or delicate surfaces.

b. Inconsistent Cleaning Over Distance

The laser beam’s intensity decreases with distance, which can result in reduced cleaning effectiveness across uneven or larger surfaces. This drop in intensity makes it harder to maintain consistent results, especially in applications requiring uniform surface preparation.

c. Increased Safety Requirements Add Operational Complexity

The use of laser cleaning systems introduces added operational complexity for companies due to strict safety requirements.

High-powered lasers, especially Class 4 systems, pose serious risks to skin, eyes, and flammable or explosive materials, necessitating robust safety protocols. These rules include the implementation of physical barriers, warning systems, and controlled-access zones.

Additionally, companies must employ or train designated safety personnel, such as Laser Safety Officers (LSOs), to oversee compliance with safety standards and ensure proper use of equipment. These requirements increase both the cost and complexity of operations, making laser cleaning less accessible for businesses without specialized staff or infrastructure.

d. Regular Maintenance Required

Components such as laser optics and cooling systems require regular inspection and cleaning to preserve operational efficiency. Laser heads and optics are delicate and require careful handling. Improper procedures can result in expensive repairs or operational downtime.

5. Significant Power Requirements

High-powered laser cleaning systems demand substantial electrical input to operate effectively. Laser cleaning systems typically require industrial-grade electricity, most commonly 220V or 400V three-phase power.

a. High Energy Consumption

These machines often draw several kilowatts of energy, especially when operating at power levels of 1,000 to 3,000 watts or more.

This high energy usage isn't limited to the laser itself. Supporting components like cooling systems, control units, and fume extractors also contribute to the total power load.

b. Infrastructure and Cost Implications

Meeting these energy demands may require electrical infrastructure upgrades, along with enhanced safety protocols to handle the increased load safely. These additional requirements not only complicate implementation, but also drive up the overall cost, making laser cleaning less accessible for many facilities.

c. Impacts on Environmental Sustainability

Laser cleaning is marketed as environmentally friendly; however, energy consumption is frequently overlooked despite being crucial for evaluating the overall sustainability of the cleaning process.

6. Safety Concerns

Laser cleaning technology presents several safety concerns that can hinder its widespread adoption.

a. Hazardous Fumes

The process of vaporizing contaminants can release hazardous fumes, such as VOCs, metal oxides, toxic byproducts, and particulate matter from the vaporized material. These airborne contaminants demand proper ventilation and air filtration systems. In work environments where fume extractors are impractical, respirator systems are also necessary to protect the operator from toxic fumes.

b. Skin and Eye Injuries

Laser cleaning generates very high temperatures during cleaning. These temperatures pose significant risk of skin burns or eye injuries, necessitating safety measures such as OD-rated safety glasses, face visors, and flame-resistant clothing and gloves to protect operators.

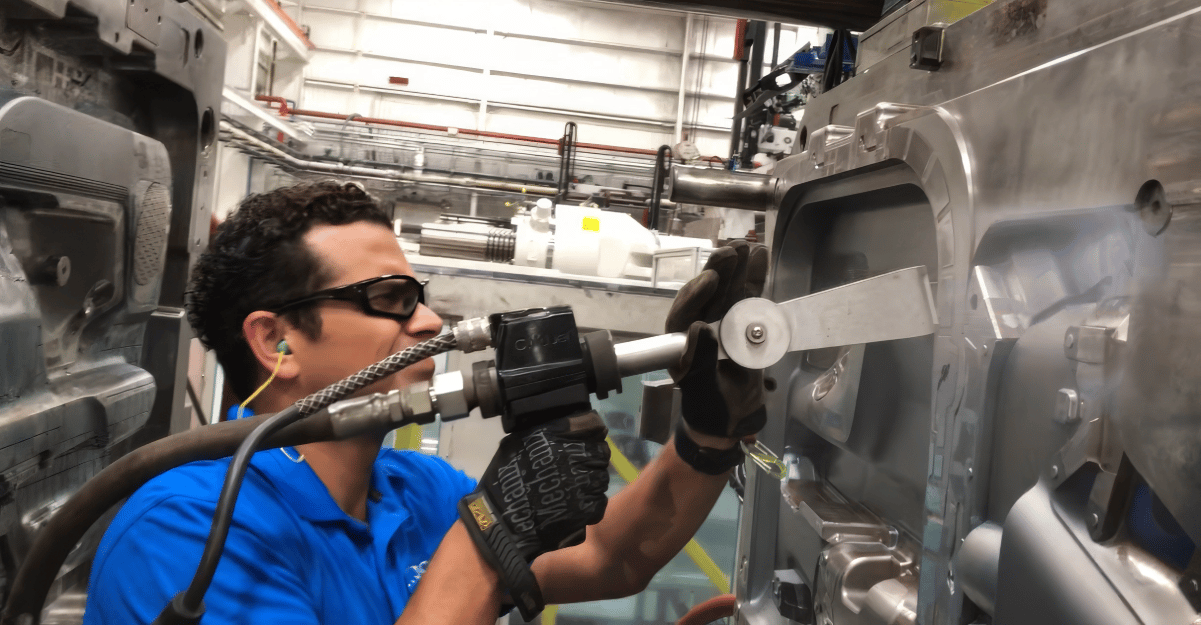

Dry Ice Blasting: A Better Alternative to Laser Cleaning

Dry ice blasting offers a better alternative to laser cleaning, providing a more practical, versatile, and cost-effective solution for a multitude of industrial applications. Below is a quick comparison of requirements for laser cleaning and dry ice blasting:

Accessibility and Ease of Operation

Dry ice blasting machines offer a lower initial capital investment and minimal training requirements compared to laser cleaning systems. Dry ice blasting is a more accessible option for many businesses looking to implement advanced cleaning technologies without substantial upfront costs or the need for highly specialized technical and safety expertise.

Versatility Across Materials, Applications, and Environments

Unlike laser cleaning, which can be limited by material type, dry ice blasting is a more versatile solution.

Dry ice effectively cleans a wide variety of surfaces, including those that are soft, delicate, or reflective—materials that laser cleaning often struggles with or cannot handle at all. Dry ice blasting also handles most forms of heavy buildup and hard-to-remove contaminants.

Speed is also a factor with industrial cleaning, and dry ice blasting operates significantly faster than laser cleaning; its speed makes it particularly well-suited for cleaning large surface areas efficiently.

Dry ice blasting can also be used safely in virtually any environment. Unlike laser cleaning, which can be sensitive to environmental factors like humidity, dust, and airborne particles that interfere with the laser beam, dry ice blasting can operate effectively in a wide range of real-world conditions without compromising performance.

Operational Simplicity

Unlike laser cleaning, which requires precise environmental controls, trained personnel, and safety protocols to operate effectively, dry ice blasting offers simpler, more straightforward operation with minimal setup, making it easier to integrate into existing workflows without added complexity.

Dry ice blasting is also easier to use and can be performed with minimal training. Laser cleaning requires extensive training and expertise to manage parameters like wavelength, pulse duration, and energy density.

Lower Operational Costs

Beyond initial investment, dry ice blasting equipment also boasts lower energy consumption and reduced maintenance requirements when compared to complex laser equipment. The only on-going cost in dry ice cleaning is purchasing dry ice itself or producing it fresh for cleaning tasks.

These factors contribute to lower overall operational costs, making dry ice blasting a more economical choice in the long run.

Minimal Power Requirements

Dry ice blasters can be plugged into a standard 110-volt outlet, drawing about 6 amps.

Enhanced Safety Profile

While all industrial cleaning methods require proper precautions, dry ice blasting presents fewer safety risks than high-powered laser beams.

Lasers can pose serious hazards, including inhalation of toxic material and VOCs, as well as skin and eye injuries. Dry ice blasting, while still requiring safety measures, presents far more limited safety measures than are required by laser cleaning.
